JHEMCU GHF420AIO-35A  F4 OSD Flight Controller Built-in 35A BLheli_S 2-6S 4in1 Brushless ESC for Toothpick RC Drone FPV Racing

Specification:

Brand Name: JHEMCU

Model: GHF420AIO-35A

Item Name: F4 OSD Flight Controller Built-in 35A 4in1 ESC

Size: 30x37.5mm

Mounting Hole: 20x20mm

Weight: 7.9g

CPU: STM32F405RGT6

MPU: MPU6000 ( SPI)

Firmware: Betaflight  BETAFLIGHTF4.HEX

Built-in Betaflight OSD ( AT7456E)

BEC Output(two):  9V/2A,  5V2.5A

USART: UART1,UART2,UART3,UART6

Receiver;SBUS,IBUS,DSM2,DSMX,PPM,TBS (UART6)

Blackbox: 8MB

Built-in Current Sensor

Support WS2812 LED

Buzzer:5V BZ-

Input Voltage: 2-6S Lipo

ESC Current: 35A

Firmware: BLHELI_S   G-H-30.HEX

- Support  PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600



Package Included:

1x F4 FC AIO 35A ESC Board

2x Power Cable  35A-16AW

1x Plug Connector XT60

4x Anti-vibration Ball

1x Electrolytic capacitor  1000UF/35V

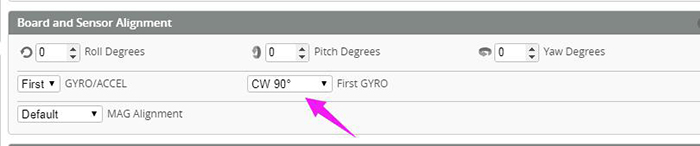

NOTE:Please change the settings like below after you flash the firmware.
