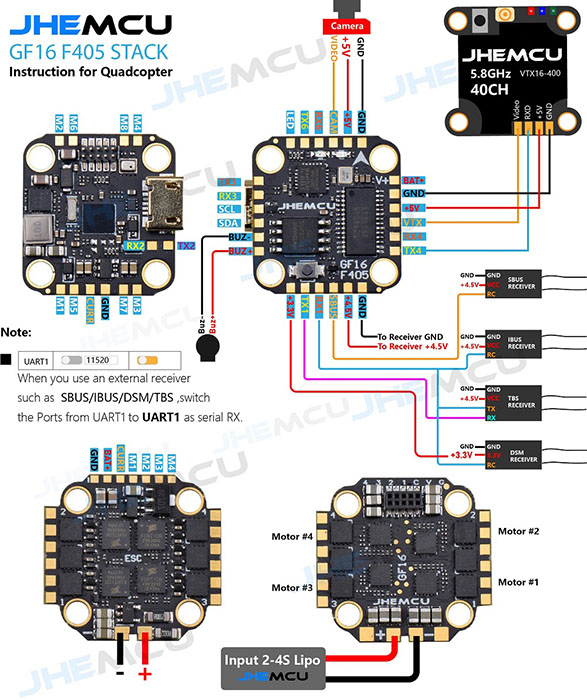

The JHEMCU GF16  is a 2-4S F4 Stack

There are 5 serial ports (UART1, UART2, UART3, UART4, UART6), 8 motor ports, one I2C port, one SBUS interface (the serial port used by SBUS is RX1),
and the WS2812 interface is reserved. Built-in black box 16MB and barometer, buzzer interface, camera interface.



Flight control parameters:

CPU: STM32F405

Gyroscope/Accelerometer: MPU6000

OSD: AT7456E

Barometer: BMP280

Black box: 16MB

IIC: Support

BEC: 5V/3A

Number of motor channels: 8 M1-M8

UART: UART1 (RC), UART2, UART3, UART4, UART6

USB: micro usb

Size: 16*16MM M3

Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX

Support programmable LED such as WS2812

Support buzzer

Built-in voltage and current sensors



ESC parameters:

1. Input voltage: 2-4S LiPo/2-4S HV LiPo

2. BEC output: none

3. Continuous working current of single ESC: 13A*4

4. External ESC size: 24*25mm (including the maximum size of pads and protruding points)

5. Screw hole pitch 16*16MM, aperture 3MM

6. Firmware: BLHELI_S G_H_30_16_7.HEX

7. Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signals



Weight: flight control + ESC = 5.8 grams





Packing list:

GF16-F405 flight control *1

GF16-ESC Four-in-one ESC *1

M2*20 screw *4

M2*5 shock absorbing ball *8

M2 nut *4

18AWG wire *2

220UF/25V capacitor *1

XT30 *1
