Products >> FC >>

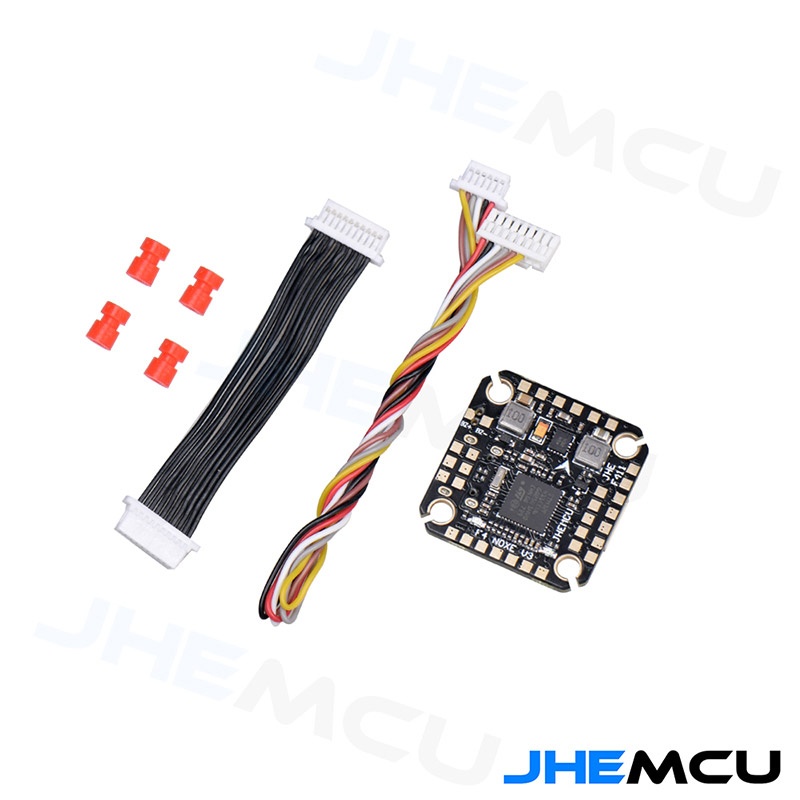

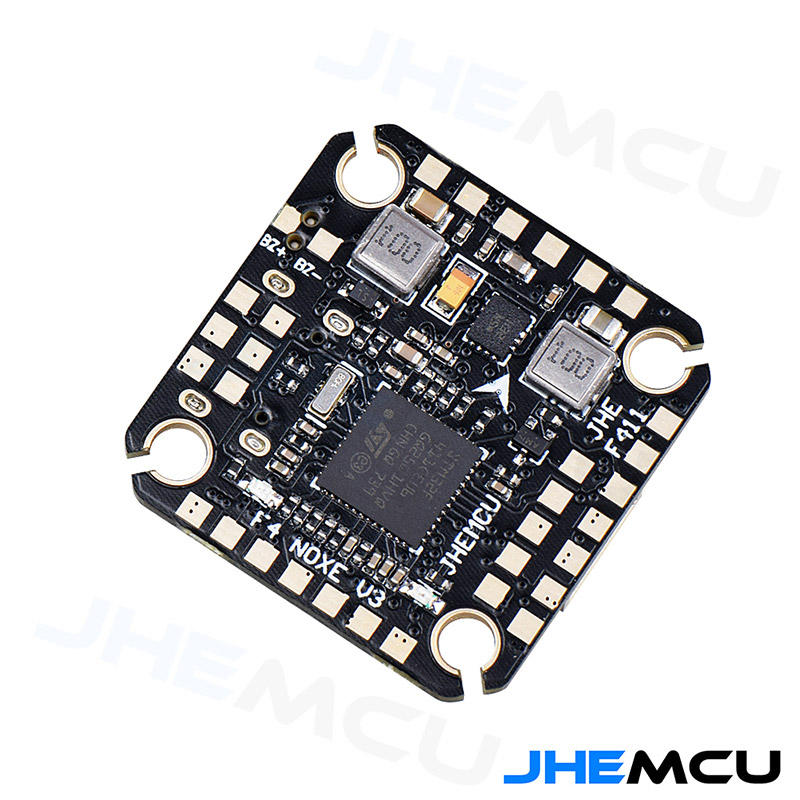

F411 NOXE V3 Flight Controller 5V 10V BEC OSD
- Product No.：202378134928

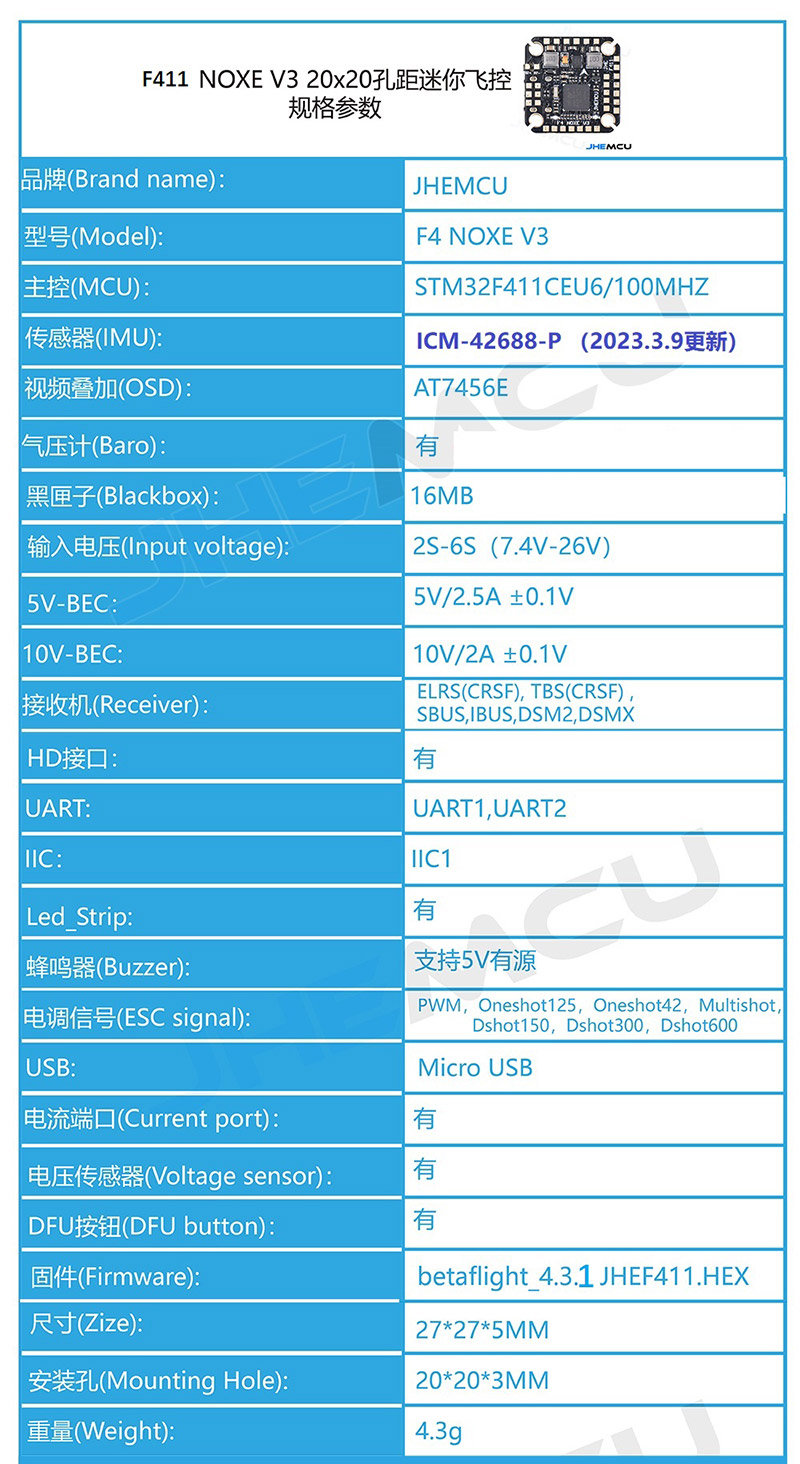

Model: F4 NOXE V3
Input voltage: 2S-6S (7.4V-26V)
5V-BEC: 5V/2.5A ± 0.1V
10V-BEC: 10V/2A+0.1V
Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBUS, IBUS, DSM, DSMX
HD interface: yes
UART: UART 1, UART 2
LIC: IIC1
LED strip: yes
Buzzer (buzzer): support 5V active
ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,DSHOT150, DSHOT 300, DSHOT 600
USB: Micro USB
Current terminal] (current port): yes
Voltage sensor (voltage sensor): Yes
Dfu button (dfu button): Yes
Firmware (Firmware): Betaflight_4.3.1 JHEF 411.HEX
Size: 27*27*5 mm
Mounting hole: 20*20*3 mm
Weight (weight): 4.3g
Main control (MCU): STM32F411CEU6/100 MHz
Sensor: ICM-42688-P/Gyro/Accel
Video Overlay (OSD): AT7456E
Barometer (Baro): Yes
Black Box (Black Box): 16MB
5V-BEC: 5V/2.5A ± 0.1V
10V-BEC: 10V/2A+0.1V
Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBUS, IBUS, DSM, DSMX
HD interface: yes
UART: UART 1, UART 2
LIC: IIC1
LED strip: yes
Buzzer (buzzer): support 5V active
ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,DSHOT150, DSHOT 300, DSHOT 600
USB: Micro USB
Current terminal] (current port): yes
Voltage sensor (voltage sensor): Yes
Dfu button (dfu button): Yes
Firmware (Firmware): Betaflight_4.3.1 JHEF 411.HEX
Size: 27*27*5 mm
Mounting hole: 20*20*3 mm
Weight (weight): 4.3g
