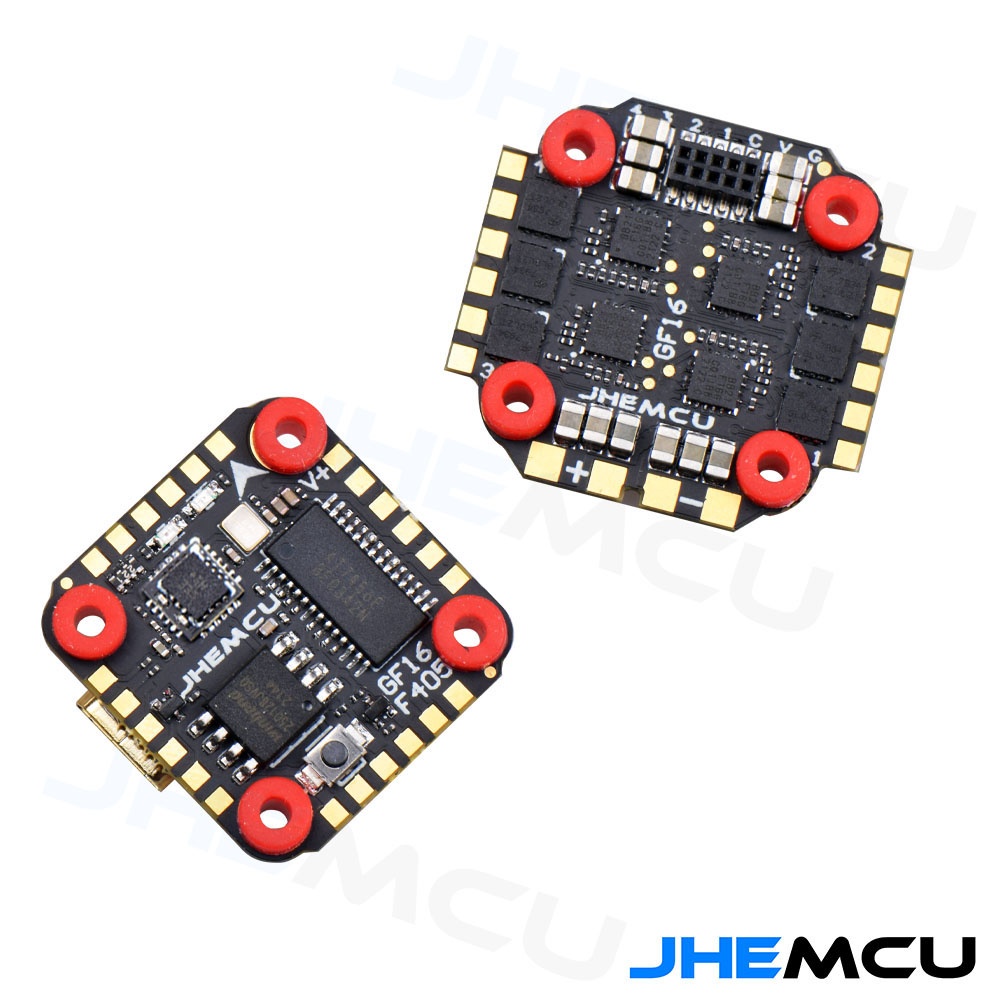

JHEMCU GF16-BMI stack F405 Flight control 13A ESC

 JHEMCU GF16-BMI stack F405 Flight control 13A ESC

There are 5 serial ports (UART1, UART2, UART3, UART4, UART6), 8 motor ports, 1 I2C port, and 1 SBUS interface (the serial port used by SBUS is RX1), with WS2812 interface reserved. Built in black box 16MB and barometer, with buzzer interface and camera interface.


Flight control parameters:

CPU: STM32F405
Gyro/accelerometer: BMI270
OSD: AT7456E
Barometer: BMP280
Black box: 16MB
IIC: Support
BEC: 5V/3A
Number of motor channels: 8 M1-M8
UART: UART1 (RC), UART2, UART3, UART4, UART6
USB: micro USB
Size: 16 * 16MM M3
Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
Support programmable LEDs such as WS2812
Support buzzer
Built-in voltage and current sensors


Electrical adjustment parameters:

1. Input voltage: 2-4S LiPo/2-4S HV LiPo
2. BEC output: None
3. Continuous working current of single electric regulator: 13A * 4
4. External electrical adjustment size: 24 * 25mm (including the maximum size of solder pads and protruding points)
5. Screw hole pitch 16 * 16MM, hole diameter 3MM
6. Firmware: BLHELI_ S G_ H_ 30_ 16_ 7. HEX
7. Supports Dshot600, Dshot300, Dshot150, Oneshot125, Multispot, PWM control signals

Weight: flight control+electric adjustment=5.8g


Feita Packaging List:

GF16-F405-BMI Flight Control * 1
GF16-ESC four in one electrical regulation * 1
M2 * 20 screws * 4
M2 nut * 4
M2 * 5 damping ball * 8
18AWG wire * 2
220UF/25V capacitor * 1
XT30 * 1
