JHEMCU RuiBet Tran-3016W 5.8GHZ 1.6W image transmission wireless video transmission supporting audio transmission
- Product No.：202378162417
Attention: Before powering on, please make sure to reliably connect the antenna, otherwise it will burn when powered on. The adapter wire included in our packaging is a feeder wire, not an antenna, and cannot be used as an antenna.
Default output: 5733MHZ (5.733GHZ)/1.6W

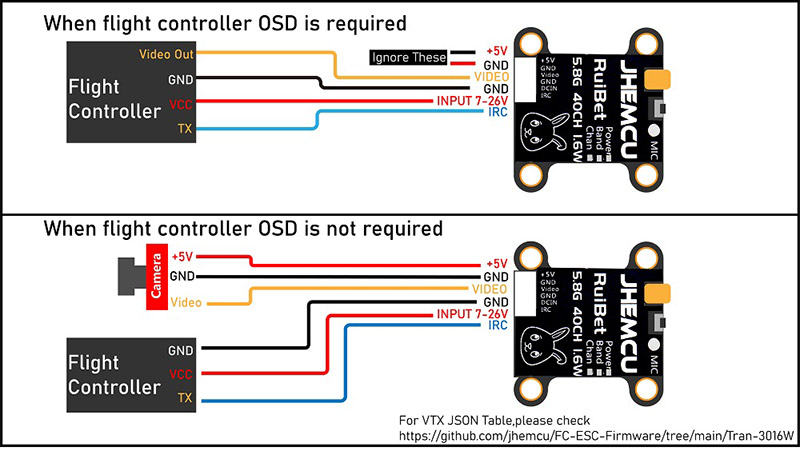

Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment
Built in microphone for real-time sound transmission
Model: Tran-3016W
Frequency: 5645-5945MHZ
Input voltage: 7-26V
Output voltage: 5V/1A

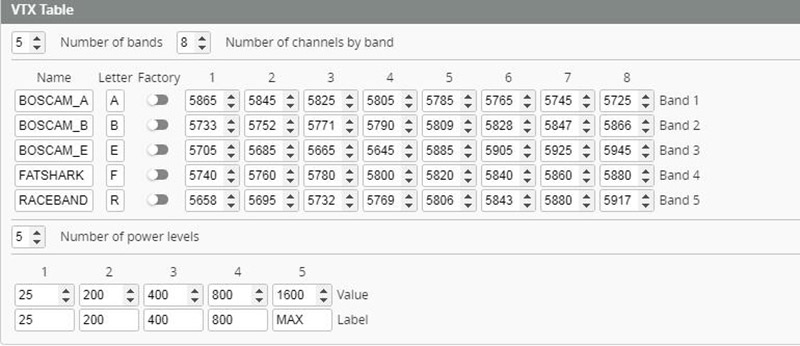

Channel : 40CH
Transmission power: PIT/25MW/200/400/800/1600MW
Boundary dimension: 36*36MM
Screw hole: 30.5*30.5MM
Screw aperture: 3MM
Weight: 7.3grams
Packaging List:
Tran-3016W * 1
MMCX-SMAJl cable * 1
6P * 1.0MM plug cable * 1
