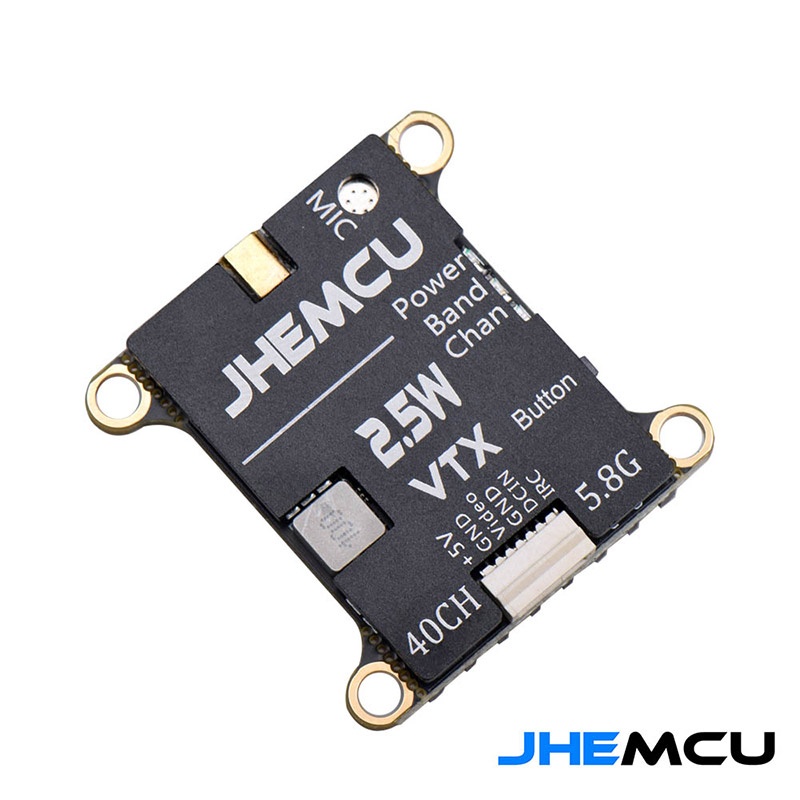

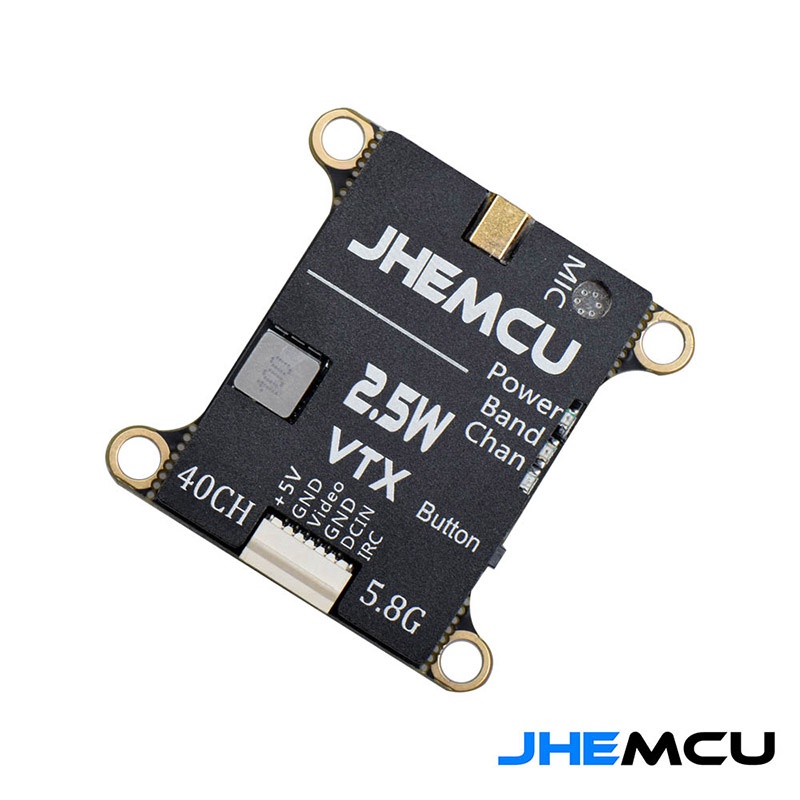

JHEMCU VTX2W5 5.8GHZ 2.5W image transmission
- Product No.：2023716224259
Attention: Before powering on, please make sure to reliably connect the antenna, otherwise it will burn when powered on. The adapter wire included in our packaging is a feeder wire, not an antenna, and cannot be used as an antenna.
25/400/800/1.5W/2.5W/0MW 6-speed adjustable power with 40 frequency points
Default output: 5733MHZ (5.733GHZ)/2.5W
Support manual adjustment of power and frequency, support IRC protocol OSD parameter adjustment
Built in microphone for real-time sound transmission
The image transmission has a built-in temperature detection module, which will automatically reduce the output power if the temperature is too high for a long time in the 2.5W gear,
When the temperature drops, it will increase to the maximum power output.
The maximum power is maintained at a static surface temperature of around 115-120 degrees Celsius when powered on for a long time.
Power supply 7-26V (2-6S)
Current: 16V power supply, 2.5W output current 650MA
Frequency range: 5645-5945MHz (5.645-5.945GHz)
Hole spacing 30.5 * 30.5MM, diameter M3
External dimensions 36 * 36 * 9.5MM
Weight: 12.9 grams

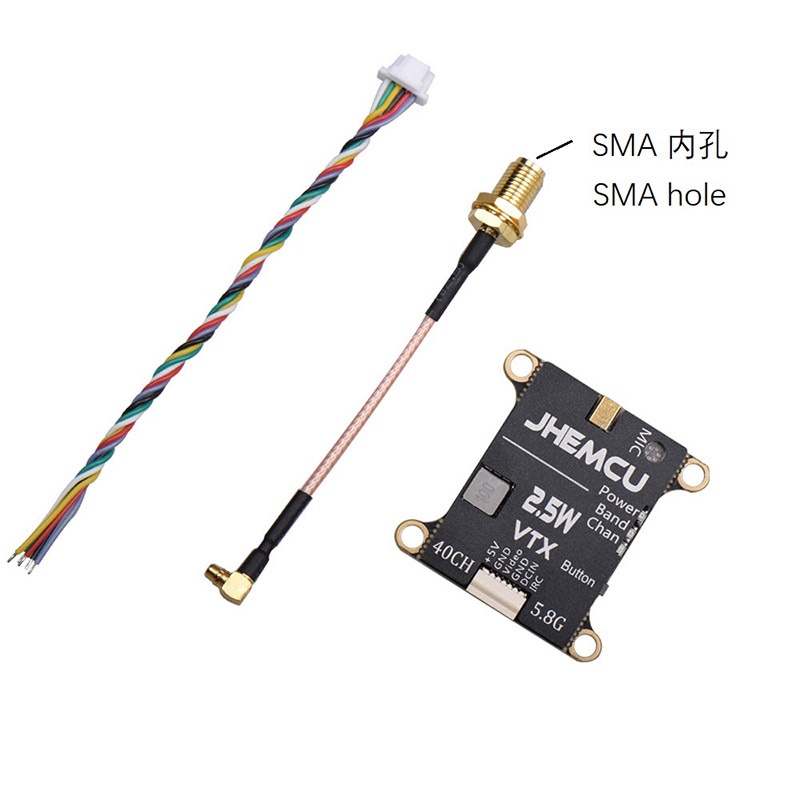

Packaging List:
VTX2W5 image transmission * 1
MMCX-SMA cable (inner hole) * 1
6P * 1.0MM plug cable (buckle) * 1
