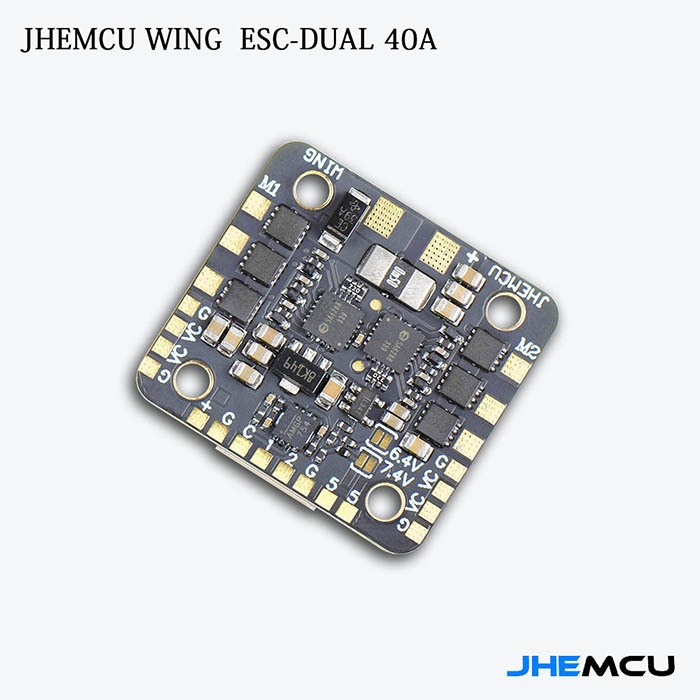

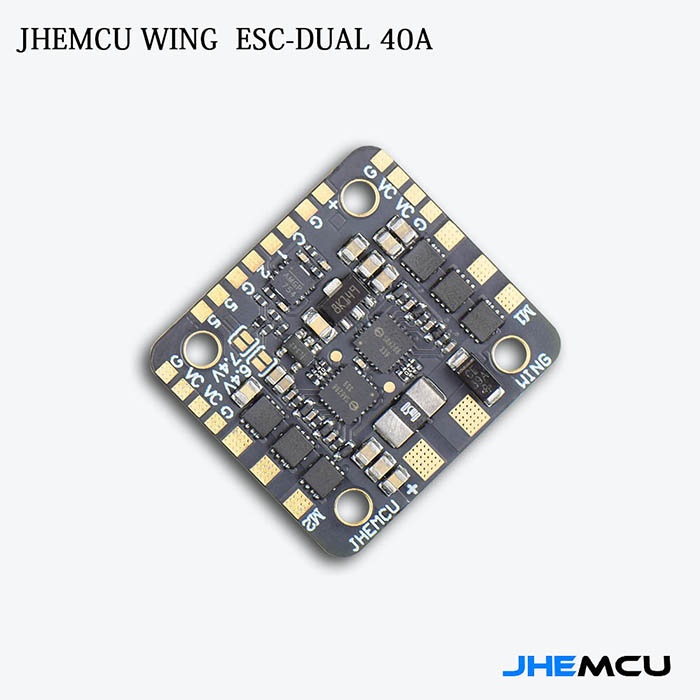

This ESC is mainly used for dual-engine fixed-wing models, of course, it can also be used for models with one motor, integrating two BLHELI-S 40A ESCs, and the input voltage supports 2-6S. The 2-in-1 eliminates the need for complicated wiring, making installation simpler and more convenient. Built-in 5V BEC, reserved for multiple groups of pads, the BEC can switch 6.4V or 7.4V output through the pads on the board, the default shipment is 5V. Built-in ammeter function, but also reserved 8P socket, which can be more convenient and compatible with the docking of flight controllers.

Since the BLS firmware has a braking function by default, it is not needed on the fixed wing, so the braking function is turned off by default when shipped.



Specification:

Product name: JHEMCU WING ESC-DUAL 40A

Input Voltage: 2-6S (7.4-27V)

Continuous current: 40A*2 channels

BEC: 5V/3A (default), switchable to 6.4V/2.5A or 7.4V/2A

Galvanometer: Yes

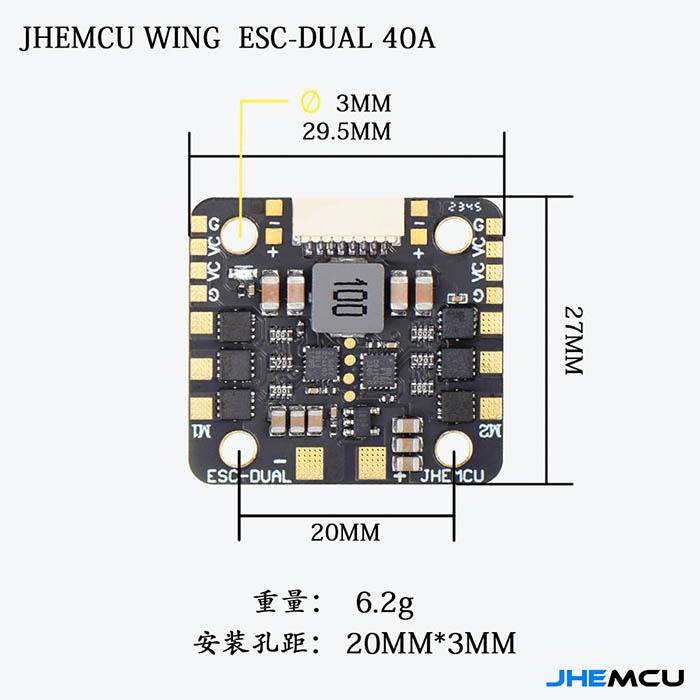

INSTALLATION: HOLE SPACING 20MM/M3

DIMENSIONS: 27*29.5MM

Firmware: BLHELI_S G-H-30 V16.7.HEX

Weight: 6.2 grams
